How to Test RCDs on Commercial Sites Safely

An RCD that does not operate when needed can leave staff, visitors and contractors exposed to electric shock risk. Knowing how to test RCDs is therefore not simply a maintenance task - it is part of managing a safe, compliant commercial site. The process must also be planned carefully, because an RCD test can interrupt supplies to equipment, IT systems, refrigeration, security systems or production areas.

A suitable testing regime combines simple functional checks with formal electrical testing by a competent person. The first confirms that the device trips. The second confirms it trips at the required speed and residual current, with results recorded for your maintenance and compliance records.

What an RCD does - and why testing matters

A residual current device, or RCD, monitors the balance of current flowing through a circuit. If it detects current taking an unintended path, such as through a person to earth, it disconnects the supply quickly. It is an additional protective measure, not a substitute for sound installation design, earthing, circuit protection or safe working procedures.

Commercial installations may use standalone RCDs at distribution boards, RCBOs protecting individual circuits, or specialist devices selected for particular loads. The correct device type matters. EV charging equipment, variable-speed drives, solar systems and other equipment capable of producing DC residual currents may require specific arrangements. A basic push-button check cannot confirm that the device type is suitable for the installation.

RCDs can also protect more than the circuit you expect. A single device may serve several sockets, lighting circuits or an entire area of a building. Before testing, understand what will lose power and whether that interruption creates an operational or safety issue.

How to test RCDs using the built-in test button

The test button, usually marked T or Test, provides a straightforward functional check. Pressing it creates a small imbalance within the device, simulating a residual-current fault. A working device should trip and disconnect the protected circuits.

Before pressing the button, notify affected staff and check what is connected downstream. Save work on computers, shut down sensitive equipment where required, and make sure testing will not compromise emergency arrangements, access control, alarms, refrigerated stock or critical processes. On larger sites, it is sensible to test one board or area at a time during an agreed maintenance window.

With the area prepared, press the test button firmly. The RCD or RCBO should move to the off or tripped position. Check that the expected circuits have been disconnected, then reset the device. If it resets normally and the circuits return to service, record the date, location and outcome in the site maintenance log.

If the device does not trip, trips but will not reset, or resets and immediately trips again, do not keep attempting to reset it. The issue may be a defective device, a fault on a connected circuit, accumulated leakage from equipment, incorrect wiring or another installation defect. Isolate and manage the affected area as necessary, then arrange investigation by a qualified electrician.

The test button is useful, but it has limits. It does not prove the RCD operates within the required disconnection time, does not verify the actual operating current, and does not confirm the condition of the wider circuit. It should never be treated as a replacement for periodic inspection and testing.

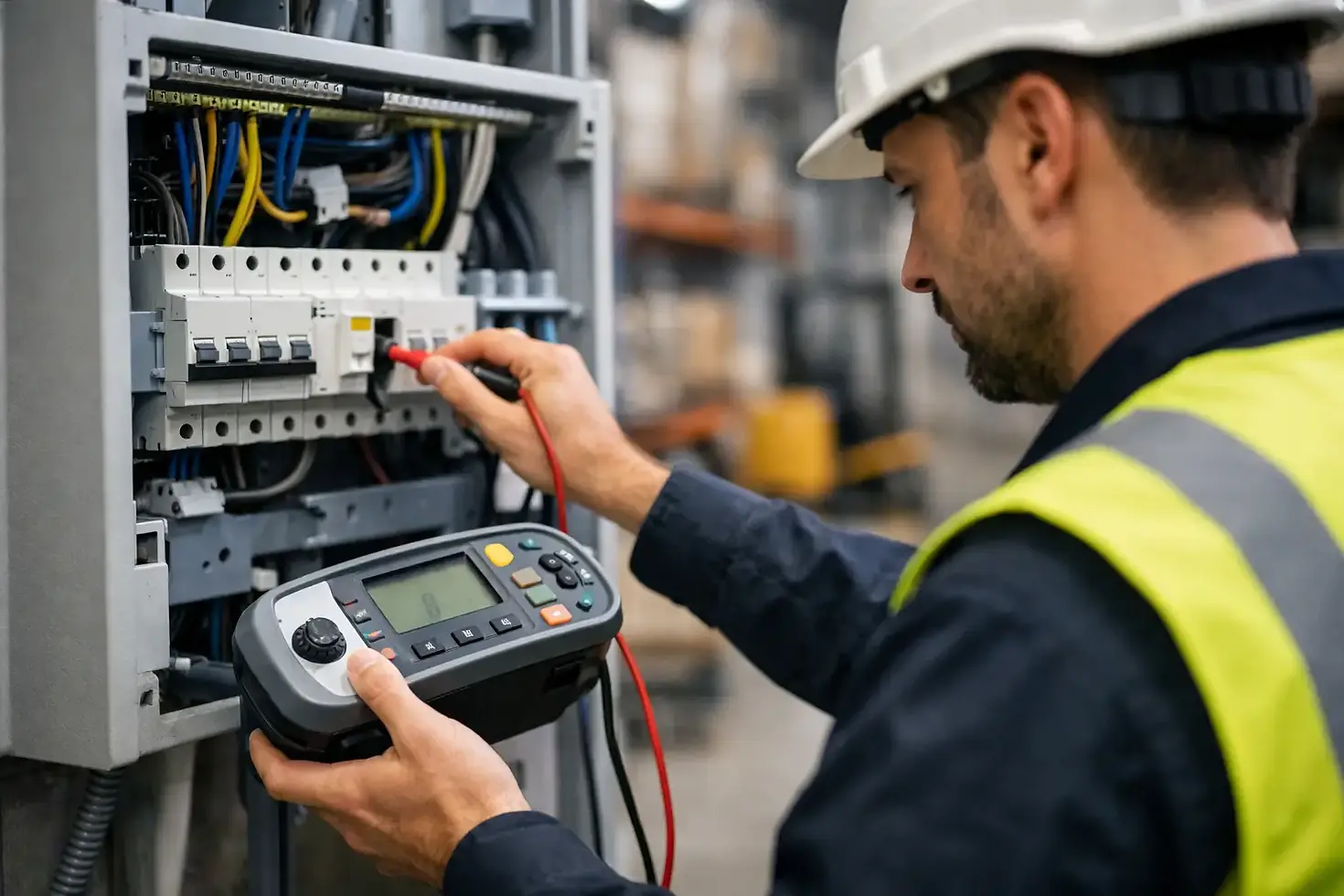

Professional RCD testing with calibrated instruments

Formal RCD testing is carried out by a competent electrician using calibrated test equipment. It is commonly undertaken during an Electrical Installation Condition Report, following remedial works, as part of planned preventative maintenance, or where a fault has been reported.

The engineer will first identify the device, its rated residual operating current, its type and the circuits it protects. They will assess the installation before testing, including any sensitive equipment or process-critical loads. In some settings, testing must be coordinated with facilities teams, IT, security, production managers or site supervisors to prevent unplanned downtime.

Instrument testing applies a controlled residual current and measures whether, and how quickly, the device operates. The precise sequence depends on the RCD type, its rating and the purpose of the test. Typical checks may include:

• a test at half the rated residual current, where the device should not trip;

• a test at its rated residual current, where it should trip within the permitted time;

• a higher-current test to confirm rapid operation for additional protection; and

• tests using the appropriate waveform where the installation contains Type A, Type F or Type B devices.

For many 30 mA RCDs used as additional protection, a higher-current test is expected to demonstrate very fast disconnection. However, acceptable results depend on the device characteristics and the applicable requirements. Results should be assessed by the person carrying out the inspection, not judged solely against a generic number copied from a checklist.

The engineer should document the RCD or RCBO reference, location, rating, type, test current, measured trip times, circuits affected and any observations. If defects are found, the report should explain the issue, its classification where relevant, the recommended action and whether immediate remedial work is needed.

How often should commercial RCDs be tested?

There is no one-size-fits-all interval for every commercial building. The appropriate frequency depends on the type of premises, the operating environment, the age and condition of the installation, the equipment connected, manufacturer guidance and the findings of previous inspections.

Functional test-button checks are generally built into a routine maintenance plan. Sites with heavy use, construction activity, damp conditions, public access or portable equipment may need more frequent attention than a low-risk, well-managed office. A facilities manager should set a clear interval, assign responsibility and retain a record of each check.

Formal RCD testing is usually planned alongside periodic inspection and testing, but it may be needed sooner after alterations, water ingress, nuisance tripping, electrical damage or changes in site use. Temporary site electrics require particularly close control because supplies, distribution arrangements and environmental conditions can change quickly.

A maintenance schedule should be risk-based rather than driven by habit. Testing too infrequently leaves faults undiscovered. Testing without planning can create avoidable disruption. The right approach protects people while keeping the building operational.

Common issues found during RCD tests

Nuisance tripping is one of the most common concerns, particularly where multiple items of electronic equipment share an RCD. Each item can contribute a small amount of earth leakage. Individually this may be acceptable, but collectively it can cause the device to operate. Simply fitting a higher-rated RCD is not an appropriate response, as it may weaken the intended protection.

The correct remedy may involve identifying faulty equipment, redistributing circuits, separating loads, reviewing RCD types or improving the design of the distribution arrangement. This requires investigation, not guesswork.

Other common issues include incorrectly labelled boards, inaccessible distribution equipment, failed test buttons, damaged enclosures, unsuitable RCD types and circuits that cannot be safely interrupted during normal hours. Each problem affects both safety and the ability to demonstrate effective compliance management.

Keep clear records after every test

A test that is not recorded is difficult to evidence later. For routine checks, record the date, board or device reference, person carrying out the check, result, reset confirmation and any action raised. For formal testing, retain the electrician's results and certificates with your wider electrical compliance documentation.

Clear records help facilities teams identify repeat faults, prove that planned maintenance has been completed and give contractors accurate information before future work begins. They are also valuable when managing multi-site estates, handovers, insurance queries and audits.

M Howe Electrical Services supports commercial clients with planned RCD testing, electrical inspection, remedial work and clear certification across Sheffield and nationwide. Testing can be scheduled around operational requirements so that necessary safety checks do not become unnecessary downtime.

A reliable RCD is only useful when it is correctly selected, regularly tested and supported by a well-maintained electrical installation. Treat every failed test or unexplained trip as a prompt for proper investigation, not a reset-and-forget task.
